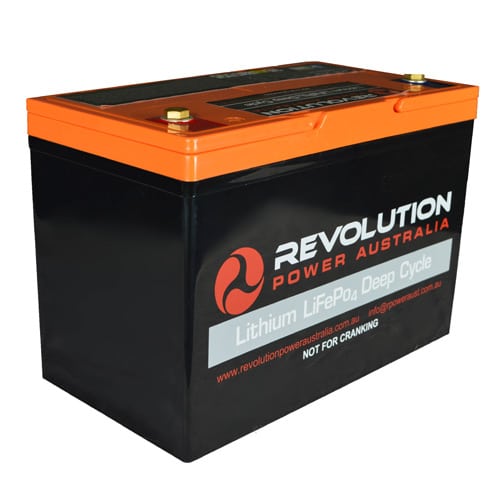

Lithium Battery | Revolution Power | 12v 100Ah High Draw Lithium Battery
Product Details
The Revolution Power 12v 100Ah High Draw Lithium Battery is built for applications that demand sustained high-current output. With a 100A continuous discharge rating, 170A pulse, and 400A peak capability, it powers inverters, winches, compressors, and high-draw 12V loads without voltage sag. Housed in an IP65-rated, fire-retardant ABS enclosure, it's equally at home under the bonnet of a 4WD, in a caravan power bay, or in a marine electrical system.
Key Features
- 100Ah / 1280Wh usable capacity — full usable rating, not derated — what you see is what you get
- 100A continuous / 400A peak discharge — handles high-draw loads including inverters, winches, and compressors without voltage sag — 2C cell rated
- 2,000 cycles at 100% DoD — up to 8,000 at 20% DoD — significantly outlasts AGM over the life of the battery
- IP65 rated enclosure — dustproof and jet-water resistant — suitable for under-bonnet, engine bay, and exposed marine installs
- 10.5kg — lightweight compared to an equivalent AGM battery
- M8 terminals — compatible with standard 4WD, caravan, and marine cable terminations
- Integrated BMS — protects against overcharge, over-discharge, cell imbalance, and temperature extremes — short-circuit response in 200–500µs
Technical Specifications
| Nominal Voltage | 12.8V |
|---|---|
| Total Capacity | 125Ah |
| Usable Capacity | 100Ah / 1280Wh |
| Cell Chemistry | LiFePO4 |
| Cell Rating | 2C |
| Max Continuous Discharge | 100A |
| Pulse Discharge | 170A |
| Peak Discharge | 400A |
| Discharge Cutoff Voltage | 10.0V |
| Nominal Charge Current | 20A |
| Recommended Charge Current | ≤ 40A |
| Max Charge Current | 50A |
| Recommended Charge Voltage | 14.6V ± 0.2V |
| BMS Charge Cutoff | 15.6V |
| Cycle Life (100% DoD) | 2,000 cycles |
| Cycle Life (50% DoD) | 5,000 cycles |
| Cycle Life (20% DoD) | 8,000 cycles |
| Dimensions (L×W×H) | 305 x 165 x 215mm |
| Weight | 10.5kg |
| IP Rating | IP65 |
| Terminal Type | M8 |
| Case Material | Fire Retardant ABS |
| Self-Discharge Rate | ≤ 3% per month |
| Short-Circuit Protection | 200–500µs |
| Charge Temperature | 0 ~ 45°C |
| Discharge Temperature | -20 ~ 60°C |
| Storage Temperature | -20 ~ 40°C |
| Certifications | ISO9001, CE, RoHS, UN38.3, SGS Audited, Intertek Audited |
| CAN Bus | No |
| Warranty | 5 Years Replacement |
Use Cases
4WD & Off-Road
Running a dual-battery system in a 4WD means your fridge, inverter, lighting, and communications gear all draw from the auxiliary bank. Revolution Power's LiFePO4 chemistry delivers stable 12.8V right to the bottom of the discharge curve — no voltage sag, no early low-voltage cutoff from a partially depleted AGM. The IP65 rating means installation flexibility: under the bonnet, in the tray, or in a purpose-built battery box.
Caravan & Motorhome
Off-grid caravanning depends on a battery that can run a 12V fridge, LED lighting, phone charging, and a diesel heater overnight without needing a generator. The flat discharge curve of LiFePO4 means your 12V appliances see consistent voltage from full to nearly empty. Combined with a solar charge controller, this battery recharges faster and cycles more times than an AGM at equivalent cost over five years.
Marine
Saltwater environments demand sealed, corrosion-resistant housings and reliable discharge performance. The IP65-rated enclosure and M8 stainless terminals make this battery suited to helm electronics, fish finders, bilge pumps, and anchor winches. The high cycle life means season after season of reliable service without replacement.
Why Revolution Power Australia
Revolution Power Australia is a Queensland-based manufacturer and supplier of advanced LiFePO4 batteries designed and engineered for Australian conditions. All batteries are backed by a 5-year replacement warranty and direct technical support from our team.
