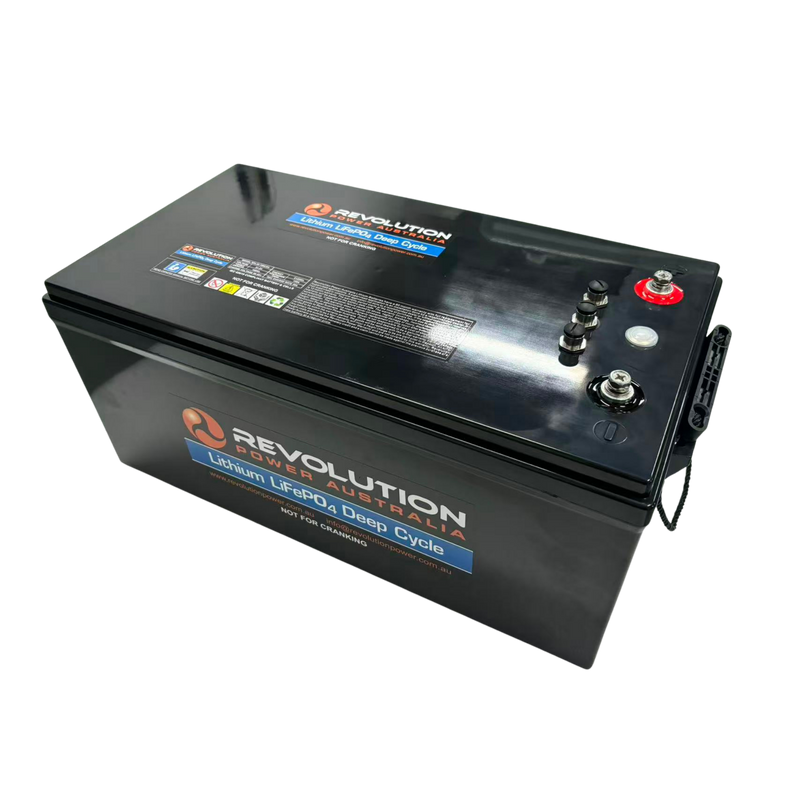

Lithium Battery | Revolution Power | 48v 100Ah CAN Bus Lithium Battery
Product Details
The Revolution Power 48v 100Ah CAN Bus Lithium Battery provides 100Ah of usable capacity at 48V — approximately 5,120Wh — with CAN Bus communication for full integration with compatible 48V inverter/charger systems. Built for serious off-grid solar storage, electric vehicle auxiliary systems, and large marine installations where 48V architecture reduces current and improves system efficiency.
Key Features
- 100Ah / 5120Wh usable capacity — full usable rating, not derated — what you see is what you get
- 25A continuous discharge — stable output for sustained loads
- 2,000 cycles at 100% DoD — long service life compared to AGM or gel alternatives
- IP54 rated enclosure — splash-proof and dust-resistant
- CAN Bus communication — integrates directly with compatible inverter/chargers and battery monitors for full system visibility and coordinated charge management
- 38.0kg — lightweight compared to an equivalent AGM battery
- Integrated BMS — protects against overcharge, over-discharge, cell imbalance, and temperature extremes
Technical Specifications
| Nominal Voltage | 51.2V |
|---|---|
| Total Capacity | 125Ah |
| Usable Capacity | 100Ah / 5120Wh |
| Cell Chemistry | LiFePO4 |
| Max Continuous Discharge | 25A |
| Recommended Charge Voltage | 58.4V ± 0.2V |
| Cycle Life (100% DoD) | 2,000 cycles |
| Weight | 38.0kg |
| IP Rating | IP54 |
| Case Material | Polycarbonate |
| Charge Temperature | 0 ~ 45°C |
| Discharge Temperature | -20 ~ 60°C |
| Storage Temperature | -20 ~ 40°C |
| Certifications | ISO9001, CE, RoHS, UN38.3 |
| CAN Bus | Yes |
| Warranty | 5 Years Replacement |
Use Cases
4WD & Off-Road
Running a dual-battery system in a 4WD means your fridge, inverter, lighting, and communications gear all draw from the auxiliary bank. Revolution Power's LiFePO4 chemistry delivers stable 12.8V right to the bottom of the discharge curve — no voltage sag, no early low-voltage cutoff from a partially depleted AGM. The IP65 rating means installation flexibility: under the bonnet, in the tray, or in a purpose-built battery box.
Caravan & Motorhome
Off-grid caravanning depends on a battery that can run a 12V fridge, LED lighting, phone charging, and a diesel heater overnight without needing a generator. The flat discharge curve of LiFePO4 means your 12V appliances see consistent voltage from full to nearly empty. Combined with a solar charge controller, this battery recharges faster and cycles more times than an AGM at equivalent cost over five years.
Marine
Saltwater environments demand sealed, corrosion-resistant housings and reliable discharge performance. The IP65-rated enclosure and M8 stainless terminals make this battery suited to helm electronics, fish finders, bilge pumps, and anchor winches. The high cycle life means season after season of reliable service without replacement.
Why Revolution Power Australia
Revolution Power Australia is a Queensland-based manufacturer and supplier of advanced LiFePO4 batteries designed and engineered for Australian conditions. All batteries are backed by a 5-year replacement warranty and direct technical support from our team.
