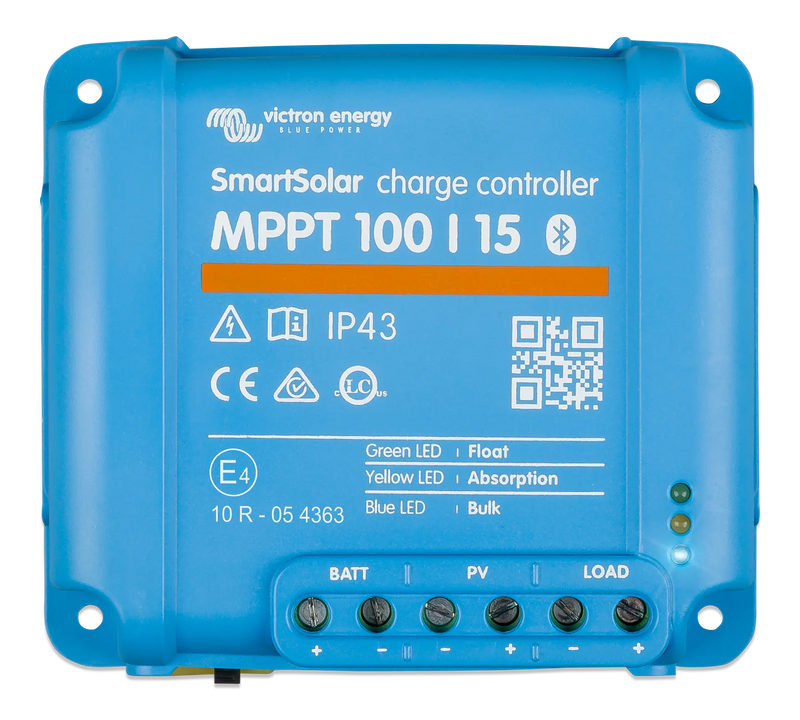

Solar Charge Controller | Victron | SmartSolar MPPT 100/15
Product Details
The Victron SmartSolar MPPT 100/15 offers a higher 100V maximum PV input voltage compared to the 75V series, making it far more flexible for panel wiring and shading tolerance. It delivers 15A charge current to 12V or 24V battery banks from up to 220W (12V) or 440W (24V) of solar. The built-in load output and BatteryLife algorithm protect your battery from deep discharge, while Bluetooth connectivity via VictronConnect keeps everything at your fingertips.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Load output with BatteryLife algorithm
- SafetyShield+ protection
- VE.Smart Networking
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 100V |
| Max Charge Current | 15A |
| System Voltage | 12/24V auto-select |
| Max PV Power (12V) | 220W |
| Max PV Power (24V) | 440W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP22 (connection area),IP43 (electronic components) |
| Dimensions | 100 x 113 x 50 mm |
| Weight | 0.6 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
For caravanners who want the option of wiring panels in series to reduce cable losses, the 100V input is a significant advantage over 75V units. It works perfectly with a single 200W panel or two smaller panels in series.
The extra headroom in PV voltage makes this ideal for 4WD setups with longer cable runs from panels to the battery. Higher input voltage means lower current, thinner cables, and less voltage drop on a 5-metre rooftop cable run.
Running 100V-compatible panels in series on a catamaran or larger vessel reduces the number of parallel strings and simplifies wiring. Reliable charging keeps navigation, communication, and safety electronics powered.
A great entry-level MPPT for remote shed or cabin installations with two small panels in series. Pair with a Smart Battery Sense temperature sensor for more accurate charging in hot Australian summers.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
