Solar Charge Controller | Victron | SmartSolar MPPT 100/30
Product Details

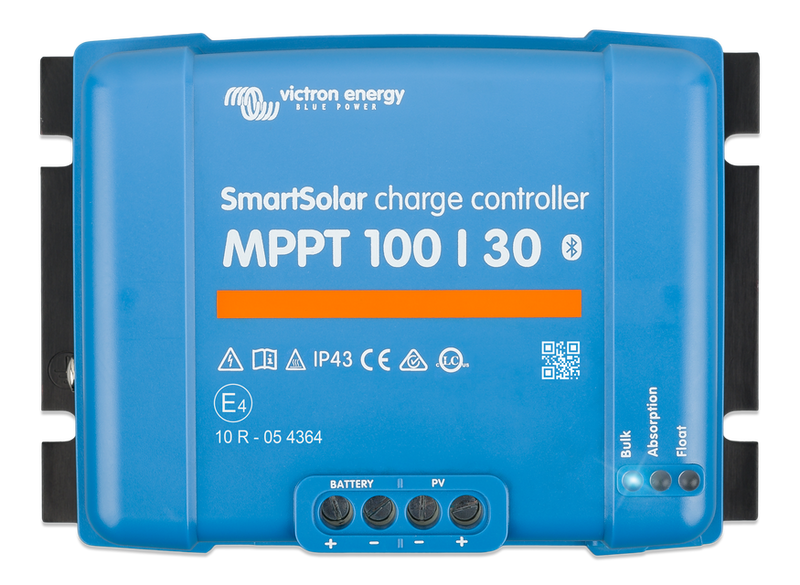

The Victron SmartSolar MPPT 100/30 steps up to 30A charge current with a 100V maximum PV input voltage, handling panels up to 440W on a 12V system or 880W on a 24V bank. It features eight pre-programmed charge algorithms selectable via a rotary switch — no app required for initial setup — alongside full VictronConnect Bluetooth control for detailed monitoring and fine-tuning. A solid mid-range controller for caravans and off-grid systems with moderate panel arrays.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Eight pre-programmed charge algorithms
- Rotary switch for algorithm selection
- VE.Smart Networking
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 100V |
| Max Charge Current | 30A |
| System Voltage | 12/24V auto-select |
| Max PV Power (12V) | 440W |
| Max PV Power (24V) | 880W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
Two 200W rooftop panels in series feed this controller comfortably for a medium caravan with a 100Ah to 200Ah battery. The rotary switch algorithm selector means setup takes seconds even if you've misplaced your phone.
A popular upgrade for 4WD expedition vehicles with a 200–400W rooftop solar array and a 200Ah lithium auxiliary battery. The 30A output fills a 200Ah LiFePO4 bank faster than lower-rated controllers.
Handles two 150W panels wired in series for reliable charging on a cruising yacht. Pairs well with a BMV-712 battery monitor and Smart Battery Sense for temperature-compensated charging in the tropics.
Well-suited to remote telecommunications equipment, farm sheds, or small holiday houses running a 400W panel array and a 200Ah AGM or lithium battery.
App Control & Connectivity

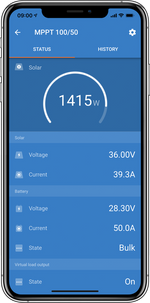

All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
