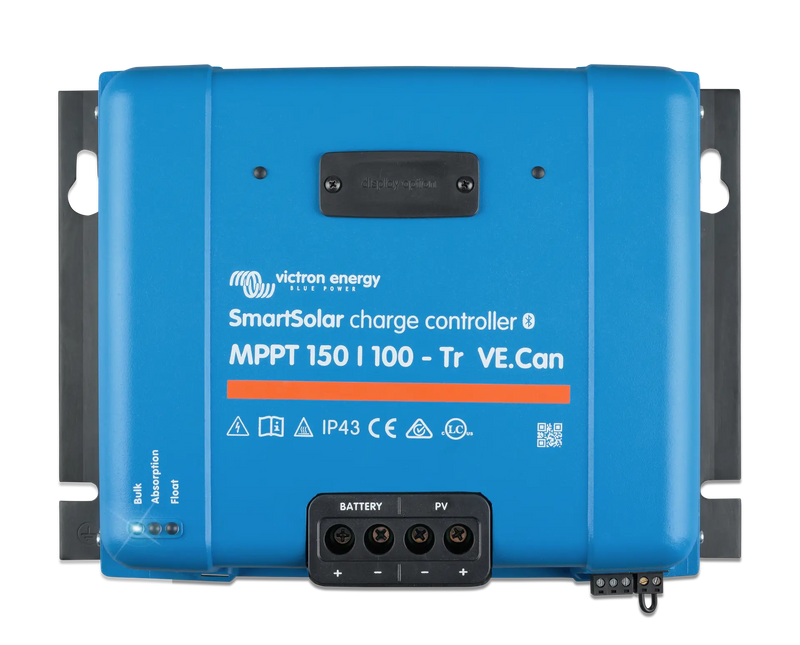

Solar Charge Controller | Victron | SmartSolar MPPT 150/100
Product Details
The Victron SmartSolar MPPT 150/100 is the most powerful controller in the 150V input range, delivering a full 100A of charge current to 12V, 24V, or 48V battery systems. At 48V, it can absorb up to 5,800W of solar energy — making it ideal for large off-grid homes, commercial installations, and high-demand marine systems. VE.Can bus connectivity enables synchronised parallel operation with up to 25 units, while Bluetooth and VictronConnect provide local wireless access for monitoring and configuration.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Can and VE.Direct ports
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 25 units via VE.Can)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 150V |
| Max Charge Current | 100A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 1450W |
| Max PV Power (24V) | 2900W |
| Max PV Power (48V) | 5800W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 216 x 295 x 103 mm |
| Weight | 4.5 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
Large expedition motorhomes and luxury caravans with expansive rooftop solar and a 48V high-capacity battery bank will find the 150/100 delivers unmatched charging speed from available sunlight.
Custom 4WD expedition platforms running 4kW+ of solar to power refrigeration, communications, and crew facilities benefit from the 150/100's ability to handle the full array output in peak conditions.
On large offshore vessels with significant hotel load — air conditioning, refrigeration, watermakers — the 150/100 paired with a large panel array provides substantial solar offset, reducing generator run time.
The flagship choice for medium to large off-grid homes with a 48V battery bank, typically combined with a MultiPlus or Quattro inverter/charger and a Cerbo GX for complete remote energy management.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
