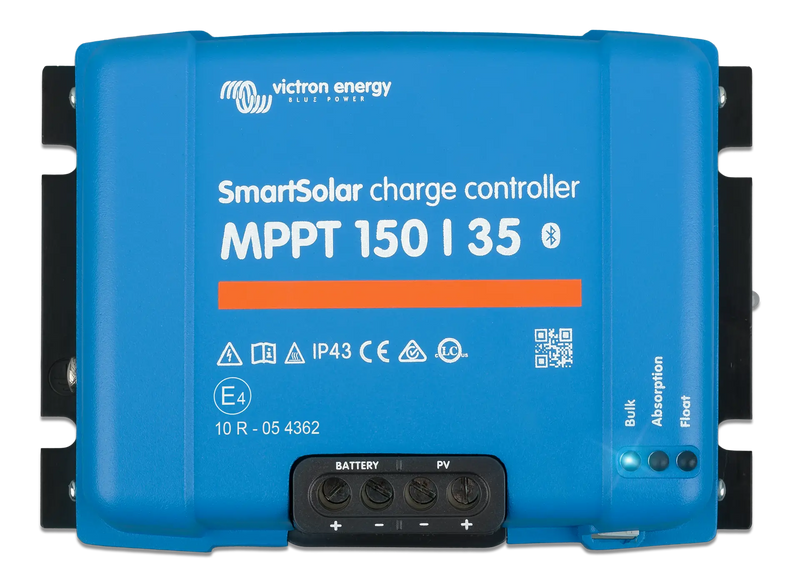

Solar Charge Controller | Victron | SmartSolar MPPT 150/35
Product Details
The Victron SmartSolar MPPT 150/35 expands PV input voltage to 150V, unlocking longer string lengths and greater panel wiring flexibility for 12V, 24V, or 48V battery systems. At 35A output, it manages up to 500W at 12V, 1,000W at 24V, or 2,000W at 48V — making it a natural choice for larger caravan or cabin installations where 48V lithium systems are increasingly common. Bluetooth and eight pre-programmed charge algorithms simplify setup and ongoing monitoring.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Eight pre-programmed charge algorithms
- Rotary switch for algorithm selection
- VE.Smart Networking
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 150V |
| Max Charge Current | 35A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 500W |
| Max PV Power (24V) | 1000W |
| Max PV Power (48V) | 2000W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.25 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
The 150V input lets you wire three or four panels in series for reduced cable losses in a large caravan or motorhome solar setup. Combine with a 48V LiFePO4 bank for a compact, high-capacity energy store.
Overlanders building 24V or 48V lithium systems for extended remote travel gain a significant performance advantage with the 150V input. Long cable runs from a roof-mounted array benefit from the higher string voltage.
Larger motorboats and sailing yachts with high house bank consumption benefit from the 150/35's ability to manage multiple panels in series. The 48V compatibility suits modern yacht electrical systems.
For off-grid farm buildings or remote worker camps with 1kW to 2kW of solar and a 48V battery bank, the 150/35 provides a compact and reliable MPPT solution with straightforward installation.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
