Solar Charge Controller | Victron | SmartSolar MPPT 150/60
Product Details

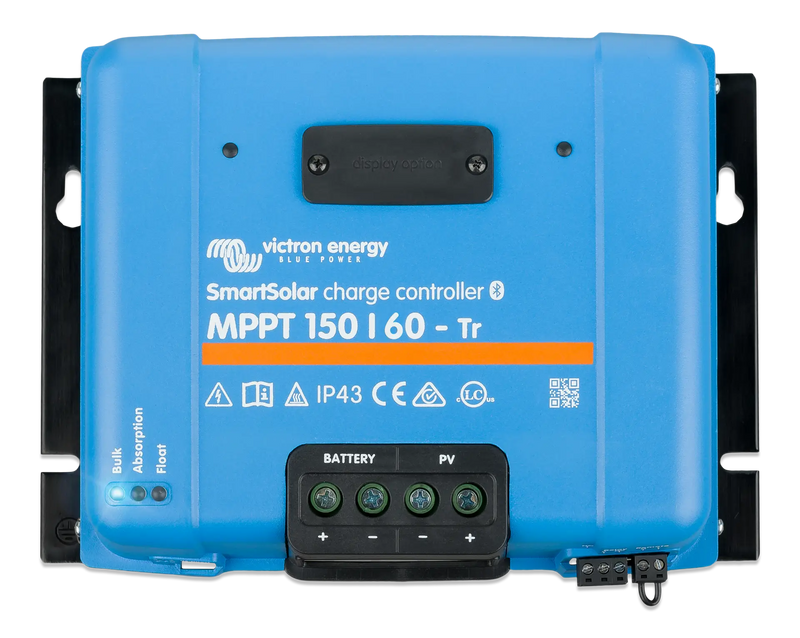

The Victron SmartSolar MPPT 150/60 is a high-power controller with screw terminal (TR) PV connections, 60A output, and a 150V maximum PV voltage. Suitable for 12V, 24V, or 48V battery banks, it handles up to 860W at 12V, 1,720W at 24V, or 3,440W at 48V. A programmable relay, remote on/off capability, and support for synchronized parallel operation of up to 10 units make it a serious workhorse for larger off-grid and marine installations. Bluetooth and VictronConnect provide real-time monitoring and custom algorithm configuration.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 10 units via Bluetooth)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 150V |
| Max Charge Current | 60A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 860W |
| Max PV Power (24V) | 1720W |
| Max PV Power (48V) | 3440W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 185 x 250 x 95 mm |
| Weight | 3.0 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
Large motorhomes and A-class caravans with a full rooftop solar array and a 300Ah+ lithium battery will appreciate the 150/60's power handling. The programmable relay can trigger generator start or load control automatically.
High-end 4WD expedition builds running 2kW of solar and a large lithium bank can run a pair of 150/60 units in parallel via Bluetooth synchronisation — a scalable solution for serious remote travel.
For offshore cruising yachts and large motorboats with significant hotel loads, the 150/60 TR handles substantial panel arrays while the programmable relay enables automatic battery management control.
A core component in medium off-grid systems — paired with a Cerbo GX and MultiPlus inverter/charger, it integrates seamlessly into a complete Victron off-grid energy system with remote monitoring via VRM.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
