Solar Charge Controller | Victron | SmartSolar MPPT 150/60 MC4
Product Details

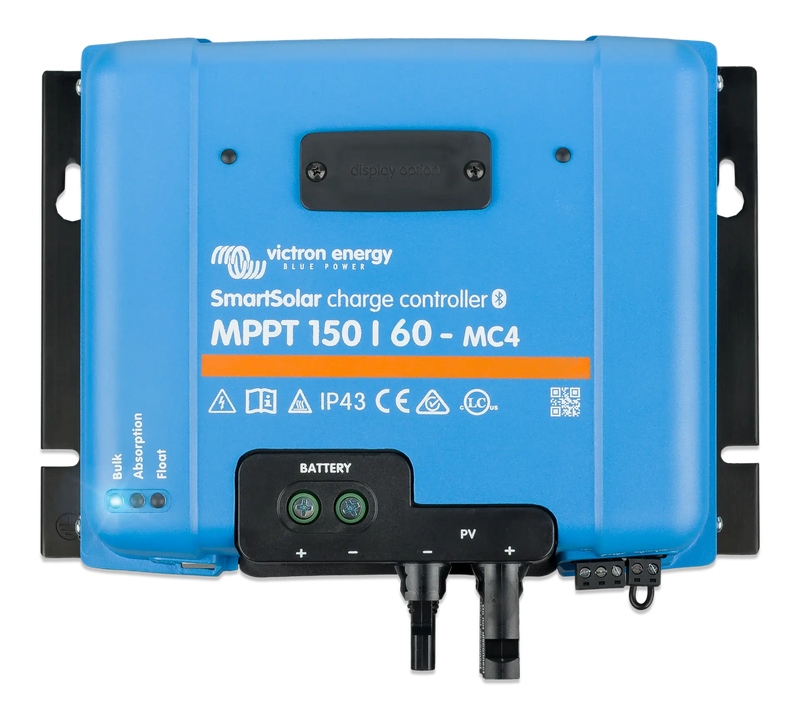

The Victron SmartSolar MPPT 150/60 MC4 shares the same 60A output and 150V PV input as the TR version, but uses weatherproof MC4 connectors for the PV input rather than screw terminals. This makes it the preferred choice for roof-mounted panel installations where direct MC4 cable connections eliminate the need for junction boxes or terminal adapters. With support for 12V, 24V, and 48V systems, a programmable relay, and Bluetooth connectivity, it delivers the same high-performance charging in a weather-ready connection format.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 10 units via Bluetooth)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 150V |
| Max Charge Current | 60A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 860W |
| Max PV Power (24V) | 1720W |
| Max PV Power (48V) | 3440W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 215 x 250 x 95 mm |
| Weight | 3.0 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
Caravans and motorhomes where panels connect directly via MC4 cable from the roof benefit from the cleaner installation that MC4 connectors provide — no additional combiner box needed at the controller.
4WD builds with factory MC4 panel outputs can wire directly to this controller, simplifying installation and reducing termination hardware. The 60A output handles a serious roof rack panel array.
On sailing vessels and powerboats where solar panels are mounted with standard MC4 outputs, the direct-connect MC4 controller saves time on installation and reduces potential leak points in a wet environment.
Ground-mount and carport solar arrays with MC4 panel leads connect directly to this controller without intermediate wiring adapters. Ideal for medium-scale off-grid systems with 1.5kW to 3kW of solar.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
