Solar Charge Controller | Victron | SmartSolar MPPT 250/100
Product Details

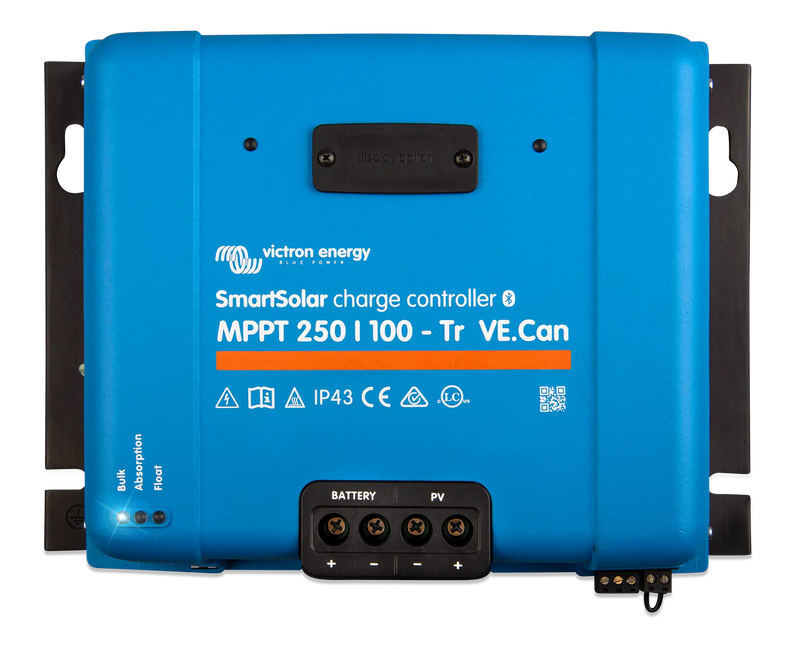

The Victron SmartSolar MPPT 250/100 is the flagship of the VE.Can SmartSolar family — 100A output, 250V maximum PV input, 12/24/48V compatibility, and 99% peak efficiency. At 48V it absorbs up to 5,800W of solar energy per controller. VE.Can bus enables synchronised parallel operation of up to 25 units through a Cerbo GX for multi-hundred-amp systems, with full remote monitoring and control via the Victron VRM portal. The screw terminal PV connections suit professional installation in switchboards and distribution enclosures.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Can and VE.Direct ports
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 25 units via VE.Can)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 250V |
| Max Charge Current | 100A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 1450W |
| Max PV Power (24V) | 2900W |
| Max PV Power (48V) | 5800W |
| Efficiency | Up to 99% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 216 x 295 x 103 mm |
| Weight | 4.5 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
For the most ambitious motorhome builds and large expedition vehicles, the 250/100 represents the highest-output single MPPT controller Victron makes in this series — pairing with a 48V battery bank for maximum performance.
Custom high-power expedition platforms running multiple SmartSolar units on a VE.Can network with a Cerbo GX hub can achieve seamless system integration and remote management from anywhere via mobile.
Large commercial vessels and offshore yachts with major hotel loads — air conditioning, watermakers, freezers — benefit from the 250/100's capacity to harvest the maximum available solar energy from a large panel array.
The top-tier choice for large residential and commercial off-grid systems. Typically paired with a MultiPlus-II Quattro inverter/charger, a 48V lithium battery bank, and a Cerbo GX for complete remote energy management.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
