Victron Energy

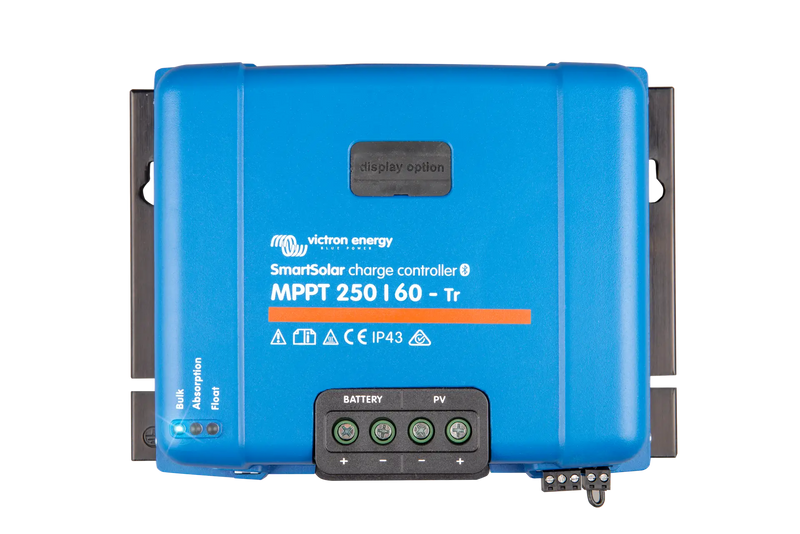

Solar Charge Controller | Victron | SmartSolar MPPT 250/60
Product Details
The Victron SmartSolar MPPT 250/60 opens the door to long panel string configurations with its 250V maximum PV input voltage — enabling up to four standard 60V panels in series for minimal cable losses. It delivers 60A to 12V, 24V, or 48V battery banks with a 99% peak efficiency and supports solar inputs up to 3,440W at 48V. The screw terminal PV connections suit fixed installations, and a programmable relay enables load or generator automation. Bluetooth and VictronConnect provide full wireless access for monitoring and configuration.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 10 units via Bluetooth)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 250V |
| Max Charge Current | 60A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 860W |
| Max PV Power (24V) | 1720W |
| Max PV Power (48V) | 3440W |
| Efficiency | Up to 99% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 185 x 250 x 95 mm |
| Weight | 3.0 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
For long-wheelbase caravans and motorhomes where cable runs from the roof to the battery compartment exceed 5 metres, the 250V input allows series strings that dramatically reduce voltage drop without expensive thick cable.
Expedition 4WD builds with roof rack and rear-mounted panels in series benefit from the 250V headroom — combine panels in series to run a clean, single cable to the controller without high-current parallel strings.
Sailing catamarans and larger monohulls with panels spread across the deck and coach roof benefit from the ability to wire strings in series to a single 250V MPPT rather than multiple smaller controllers.
Ground-mount systems with string voltages exceeding 150V — common when using standard 60-cell residential panels — require the 250V input rating. The 250/60 handles two panels in series at 120Voc with comfortable margin.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
Why Buy From Revolution Power
Revolution Power is a Queensland-based Victron Energy specialist. We stock the full SmartSolar MPPT range and provide expert pre-sales advice to help you select the right controller for your battery bank, panel array, and system voltage. Fast shipping Australia-wide from our Coomera, QLD warehouse. Call or email us for a free system sizing consultation.
