Victron Energy

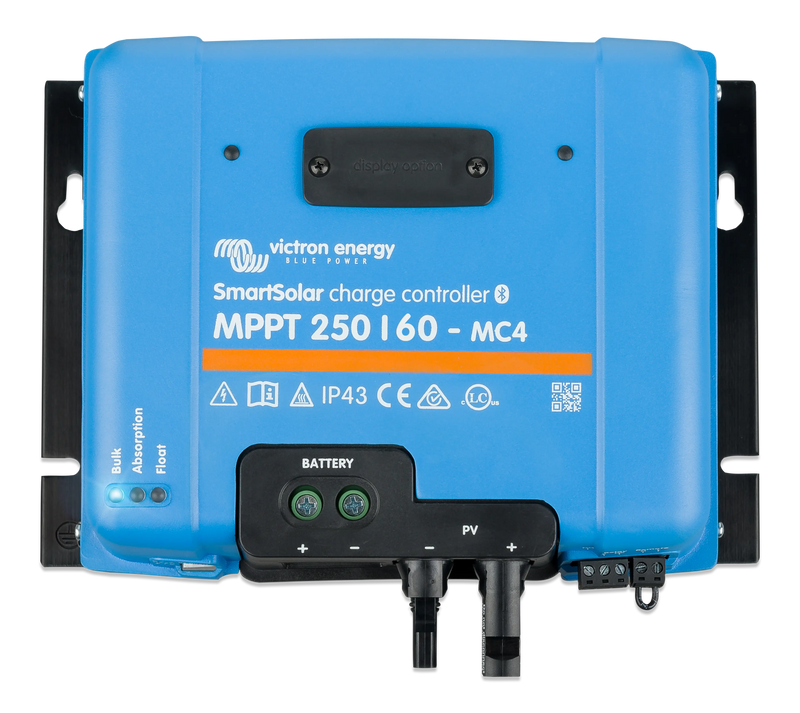

Solar Charge Controller | Victron | SmartSolar MPPT 250/60 MC4
Product Details
Sharing the electrical specification of the 250/60 TR, the Victron SmartSolar MPPT 250/60 MC4 swaps screw terminal PV inputs for MC4 connectors — the standard in panel manufacturing — making this the drop-in choice when panels ship with MC4 leads. It handles 60A output from 250V string inputs to 12V, 24V, or 48V batteries with 99% peak efficiency. The programmable relay, remote on/off, and Bluetooth connectivity through VictronConnect round out the specification for professional fixed installations.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Programmable relay
- Remote on/off
- Synchronized parallel operation (up to 10 units via Bluetooth)
- Eight pre-programmed charge algorithms + user defined
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 250V |
| Max Charge Current | 60A |
| System Voltage | 12/24/48V auto-select (36V manual) |
| Max PV Power (12V) | 860W |
| Max PV Power (24V) | 1720W |
| Max PV Power (48V) | 3440W |
| Efficiency | Up to 99% |
| Bluetooth | Built-in |
| Enclosure | IP43 (electronic components), IP22 (connection area) |
| Dimensions | 215 x 250 x 95 mm |
| Weight | 3.0 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
MC4 connectors from rooftop panels connect directly to this controller without additional junction hardware, keeping the installation tidy and watertight from panel to controller in a motorhome or large caravan.
Custom 4WD builds where the owner has already terminated panel leads in MC4 connectors will find this the most convenient 250V option. High-efficiency MPPT tracking ensures maximum energy capture from the array.
Yacht installers who prefer MC4 direct connection from deck panels to below-deck controllers will appreciate the clean installation the MC4 version enables — particularly in retrofit installations.
Off-grid homes and commercial buildings with standard residential panels (which ship with MC4 leads) can connect directly to the 250/60 MC4 without any additional wiring adapters or combiners.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
