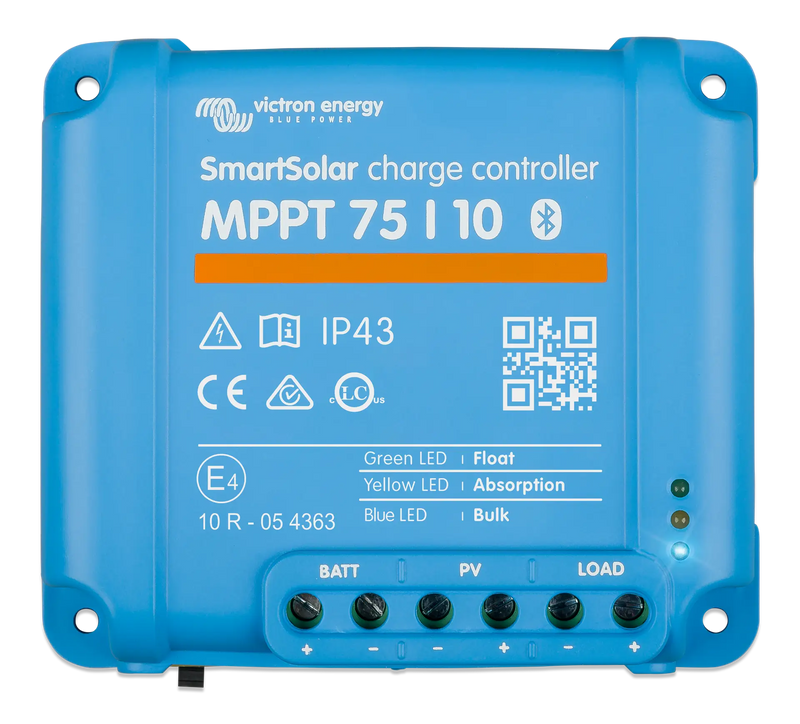

Solar Charge Controller | Victron | SmartSolar MPPT 75/10
Product Details
The Victron SmartSolar MPPT 75/10 is Victron's most compact solar charge controller, designed for small 12V or 24V battery systems up to 145W (12V) or 290W (24V) with a maximum PV voltage of 75V. It's the go-to choice for small caravans, camper trailers, and compact 4WD setups where panel space is limited. Built-in Bluetooth lets you monitor and configure it wirelessly via the free VictronConnect app — no laptop needed.
Key Features
- Ultra-fast MPPT tracking
- Built-in Bluetooth Smart
- VE.Direct port
- Load output with BatteryLife algorithm
- SafetyShield+ protection
- VE.Smart Networking
Technical Specifications
| Specification | Value |
|---|---|
| Max PV Open Circuit Voltage | 75V |
| Max Charge Current | 10A |
| System Voltage | 12/24V auto-select |
| Max PV Power (12V) | 145W |
| Max PV Power (24V) | 290W |
| Efficiency | Up to 98% |
| Bluetooth | Built-in |
| Enclosure | IP22 (connection area),IP43 (electronic components) |
| Dimensions | 100 x 113 x 40 mm |
| Weight | 0.5 kg |
Compatible Battery Types
Works with AGM, Gel, Flooded (wet cell), LiFePO4, and lithium-ion batteries. Battery type and absorption/float voltages are configurable via the VictronConnect app.
Use Cases
Ideal for small camper trailers and weekender caravans where roof space limits panel count. The 75/10 handles a single 100–140W panel with ease, keeping your lights, water pump, and phone charged at camp.
A popular choice for 4WD and dual-cab ute setups running a small auxiliary battery under the tray or in the toolbox. Compact enough to fit in tight spots, yet smart enough to protect your battery.
Well-suited to small tinnies, kayaks, and day boats needing reliable solar top-up for a 12V battery powering navigation lights or electronics. IP43-rated electronics handle the marine environment.
For small off-grid cabins or garden sheds with a single panel and a modest battery, the 75/10 provides reliable MPPT efficiency and battery protection without overcomplicating a simple system.
App Control & Connectivity
All SmartSolar MPPT controllers feature built-in Bluetooth for wireless monitoring and configuration via the free VictronConnect app (iOS and Android). Adjust charge settings, view real-time solar data, and receive alerts — all without needing a laptop or additional hardware. For advanced monitoring, connect to a Victron GX device (Cerbo GX, Venus GX) for full system integration and remote access via VRM.
