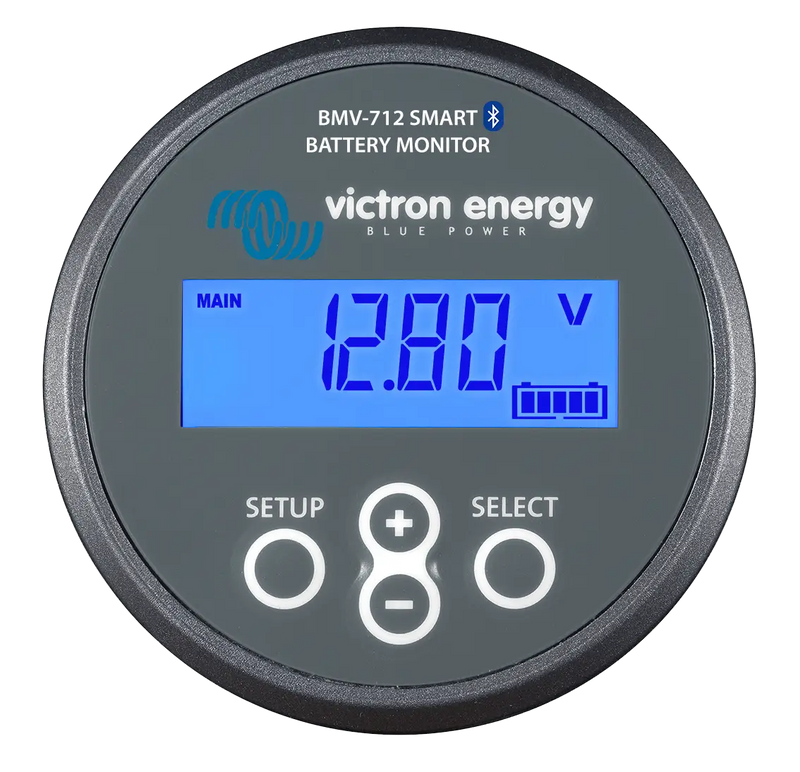

Battery Monitor | Victron | BMV-712 Black Smart
$215.70
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
| Specification | Value |
|---|---|
| Supply Voltage Range | 6.5 – 70 V DC |
| Aux Input Voltage Range | 6.5 – 70 V DC |
| Battery Capacity Range | 1 – 9999 Ah |
| Current Draw (backlight off) | < 1 mA |
| Current Draw (monthly) | 0.7 Ah/month (1 mA) @ 12V; 0.6 Ah/month (0.8 mA) @ 24V |
| Current Resolution | ± 0.01 A (10 mA) |
| Voltage Resolution | ± 0.01 V |
| Amp-hour Resolution | ± 0.1 Ah |
| State of Charge Resolution | ± 0.1% |
| Temperature Resolution | ± 1 °C / °F |
| Current Measurement Accuracy | ± 0.4% |
| Voltage Measurement Accuracy | ± 0.3% |
| Relay | Bi-stable relay, 60 V / 1 A, normally open (function can be inverted) |
| Aux Input | Measures second battery voltage, temperature (sensor included), or midpoint voltage |
| Temperature Measurement Range | -20 to +50 °C |
| VE.Direct Port | Yes |
| Bluetooth | Built-in Bluetooth Smart |
| Included Shunt | 500 A / 50 mV (quick connect PCB) |
| Shunt Compatibility | 500A, 1000A, 2000A, 6000A / 50 mV |
| Operating Temperature | -40 to +50 °C |
| Installation | Flush mount — 63 mm diameter front cut-out |
| Front Bezel (square) | 69 × 69 mm |
| Body Diameter × Depth | 52 mm × 31 mm |
| IP Rating | IP55 (not intended for outdoor use) |
| Certifications — Safety | EN 60335-1 |
| Certifications — Emission/Immunity | EN 55014-1 / EN 55014-2 |
| Certifications — Automotive | ECE R10-4 / EN 50498 |
