Battery Protect | Victron | BatteryProtect 12/24V-100A
Product Details

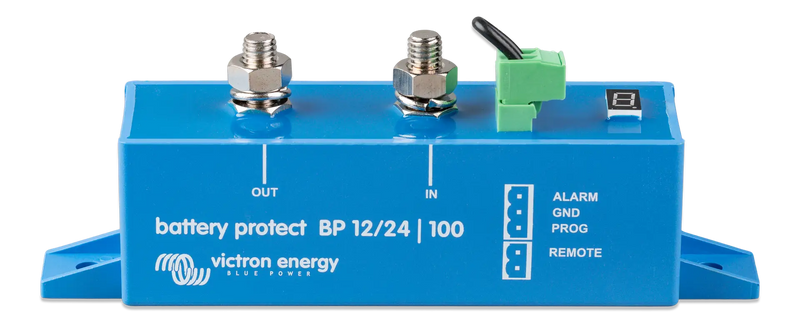

The Victron BatteryProtect 12/24V-100A is an automatic low-voltage disconnect (LVD) device that protects your 12V or 24V battery from deep discharge. Rated at 100A continuous, it connects in series between the battery and your DC loads — fridges, lights, pumps, entertainment systems — automatically cutting power when battery voltage drops to a programmable threshold. When the battery recovers through solar charging or alternator input, loads reconnect automatically. Configured via a 7-segment display and rotary switch on the unit. A must-have for caravans, 4WDs, and marine applications where battery protection matters.
Key Features
- Automatic low-voltage disconnect — protects battery from over-discharge
- Programmable disconnect and reconnect voltages
- 100A continuous rated / 600A peak (30s surge protection)
- Alarm output with 12-second pre-disconnect warning
- Remote on/off input for system integration
- 90-second delayed disconnect prevents nuisance trips on short voltage dips
- Solid-state MOSFET switching — no relays, ignition-proof, silent operation
- Ultra-low self-consumption — 1.5 mA in normal operation
Technical Specifications
| Specification | Value |
|---|---|
| Max Continuous Current | 100A |
| Peak Current (30s) | 600A |
| System Voltage | 12/24V |
| Input Voltage Range | 6-35V |
| Disconnect Voltage Range | Programmable 10–13V (12V) / 20–26V (24V) |
| Reconnect Voltage Range | Programmable 11–14V (12V) / 22–28V (24V) |
| Self-consumption | 1.5 mA |
| Bluetooth | Not included |
| IP Rating (Electronics) | IP67 (fully potted) |
| Dimensions (L x W x H) | 59 x 42 x 115 mm |
| Weight | 0.5 kg |
How It Works
The BatteryProtect installs in series between the battery and your DC loads — important: it protects loads only, never in the charge circuit or starter motor line. When battery voltage falls to the set disconnect threshold, the alarm output activates for 12 seconds as a warning before loads are cut after a 90-second delay. This delay prevents false trips from short-duration voltage sags under heavy starting loads. Once the charger (solar, alternator, or mains) raises the battery voltage back above the reconnect threshold, loads are automatically restored after a 30-second delay. MOSFET solid-state switching means no audible relay click, no arcing, and the unit is ignition-proof — suitable for fuel-present environments.
Use Cases
In caravans and camper trailers, the BatteryProtect is most commonly used to protect the house battery from being flattened by the fridge, lighting, or 12V accessories while parked off-grid. At 100A rating, it handles the combined load of a compressor fridge, LED lighting, a water pump, and 12V entertainment with headroom to spare. When camp solar brings the battery back up overnight, everything reconnects automatically.
For 4WD touring and marine applications, the BatteryProtect is installed on the auxiliary battery to ensure that running loads — ARB fridges, winch power circuits, pumps — cannot flatten the battery to the point of a no-start. The 100A rating suits most dual-battery setups, and the IP67 electronics withstand the damp, vibration, and temperature extremes of these environments.
Why Buy From Revolution Power
Revolution Power is a Queensland-based Victron Energy specialist supplying caravanners, boaties, and off-grid installers across Australia. We stock the full BatteryProtect range from our Coomera, QLD warehouse and ship fast Australia-wide. Not sure which rating you need? The amp rating of your BatteryProtect must exceed the total combined current draw of all connected loads. Our team is happy to help with sizing — contact us before ordering if you're unsure.
