Victron Energy
GX Monitor | Victron | Cerbo GX
Product Details

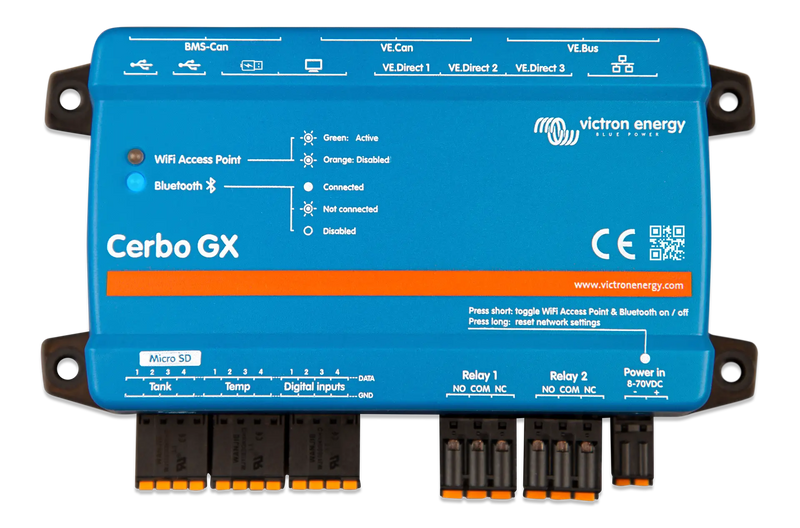

The Victron Cerbo GX is the central communication hub for any Victron Energy system. It connects your inverter/charger, MPPT solar chargers, battery monitor, and SmartShunt via VE.Bus and VE.Direct, aggregating real-time data into one dashboard. Accessible locally through an optional GX Touch 50 or GX Touch 70 touchscreen and remotely via the free Victron VRM portal, the Cerbo GX gives you complete visibility and control over your power system from anywhere in the world.
Key Features
- Remote monitoring and configuration via the free VRM portal — accessible from any smartphone, tablet or browser
- 1x VE.Bus port for MultiPlus, Quattro, and other Victron inverter/chargers
- 3x VE.Direct ports for MPPT solar chargers, SmartShunts, and BMV battery monitors
- Built-in WiFi and Bluetooth — no external adapter required
- Ethernet port for wired network connection
- 2x programmable relay outputs — ideal for generator start/stop and alarm control
- Display via optional GX Touch 50 or GX Touch 70 accessory (sold separately)
- USB port for generator auto-start interface and system expansion
Technical Specifications
| Specification | Value |
|---|---|
| Display | Via GX Touch 50 or GX Touch 70 accessory |
| VE.Bus Ports | 1 |
| VE.Direct Ports | 3 |
| Ethernet | Yes |
| WiFi | Yes (built-in) |
| Bluetooth | Yes (built-in) |
| Relay Outputs | 2 |
| Input Voltage | 8–70V DC |
| Dimensions | 48 x 154 x 78 mm |
| Weight | 0.3 kg |
Connected System Overview
Acts as the communication hub between all Victron devices. Connect MultiPlus/Quattro via VE.Bus, MPPT solar chargers and SmartShunts via VE.Direct, and access full system data — solar production, battery SoC, loads, grid/generator input — in one dashboard. Remote access and configuration via the free VRM portal (victronenergy.com/vrm).
Use Cases
In off-grid solar installations, the Cerbo GX ties together your battery bank, solar array, and inverter into one coherent system. Configure charge parameters remotely, monitor battery state of charge in real time, trigger alerts if voltage drops below threshold, and automate generator start/stop — all without physically accessing the installation site.
For marine and motorhome applications, the Cerbo GX's compact footprint and wide input voltage range make it ideal for 12V, 24V, or 48V vehicle and vessel power systems. Track energy flows from solar panels, alternator chargers, and shore power simultaneously. The VRM portal keeps you informed whether you're aboard or back on land checking your boat remotely.
