Victron Energy
GX Monitor | Victron | Ekrano GX
Product Details

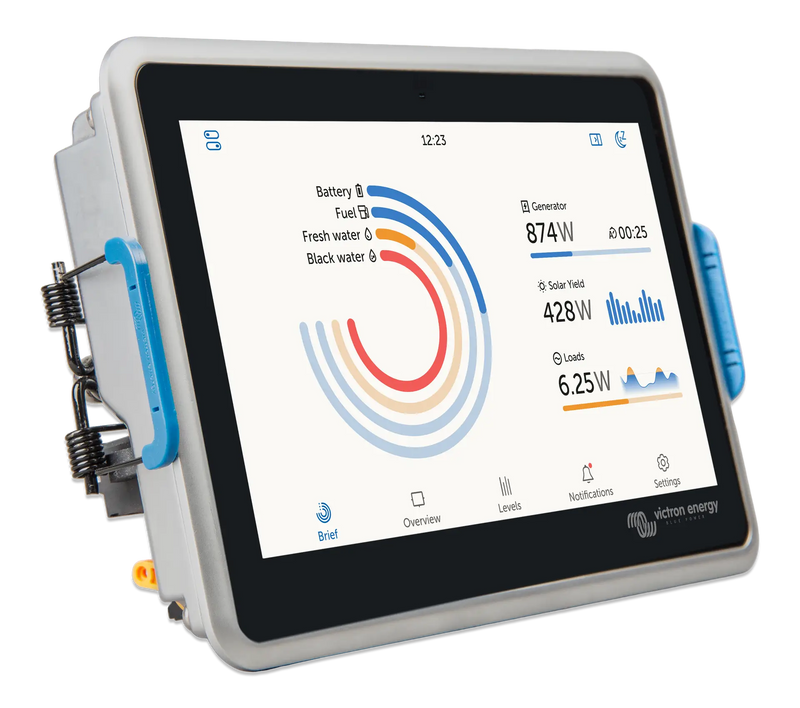

The Victron Ekrano GX is the flagship GX system monitor from Victron Energy, featuring a built-in 7-inch high-resolution touchscreen display. It serves as the central communication hub for your entire Victron power system — connecting inverter/chargers, MPPT solar chargers, battery monitors, and SmartShunts via VE.Bus and VE.Direct, while providing both local touchscreen access and full remote monitoring and control through the free VRM portal. No external display accessory is required.
Key Features
- Built-in 7-inch capacitive touchscreen — complete local control without an external display
- Remote monitoring and configuration via the free VRM portal from any browser or smartphone
- 1x VE.Bus port for MultiPlus, Quattro, and Victron inverter/chargers
- 3x VE.Direct ports for MPPT solar chargers, SmartShunts, and BMV monitors
- Built-in WiFi and Bluetooth — no adapters required
- Ethernet port for wired network connectivity
- 2x programmable relay outputs for generator auto-start and alarm functions
- Panel or wall mountable — professional flush or surface install
Technical Specifications
| Specification | Value |
|---|---|
| Display | Built-in 7-inch touchscreen |
| VE.Bus Ports | 1 |
| VE.Direct Ports | 3 |
| Ethernet | Yes |
| WiFi | Yes (built-in) |
| Bluetooth | Yes (built-in) |
| Relay Outputs | 2 |
| Input Voltage | 8–70V DC |
| Dimensions | 124 x 187 x 33 mm |
| Weight | 0.6 kg |
Connected System Overview
Acts as the communication hub between all Victron devices. Connect MultiPlus/Quattro via VE.Bus, MPPT solar chargers and SmartShunts via VE.Direct, and access full system data — solar production, battery SoC, loads, grid/generator input — in one dashboard. Remote access and configuration via the free VRM portal (victronenergy.com/vrm).
Use Cases
The Ekrano GX is the ideal choice for permanent off-grid installations where a dedicated, always-on display is required at the system panel. Energy managers, property owners, and professional installers can read battery SoC, solar yield, load history, and system alarms at a glance without picking up a phone or opening a browser — critical for commercial or agricultural installations where staff need immediate system visibility.
On marine vessels and large motorhomes, the Ekrano GX's integrated touchscreen replaces a separate display, saving space and reducing wiring complexity. Sunlight-readable and responsive, it gives crew and drivers instant access to power system status. Pair with GX LTE for remote monitoring even at sea or in remote areas without Wi-Fi.
