Lynx Busbar | Victron | Lynx Distributor (M10)
Product Details

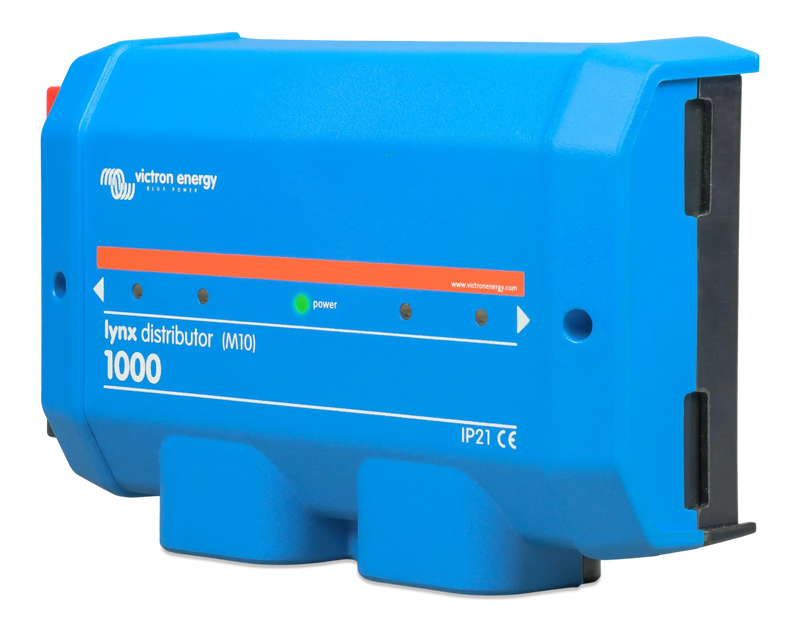

The Victron Lynx Distributor (M10) is a high-current DC distribution busbar with four fuse positions, designed to safely distribute power from your battery bank to multiple load circuits or Victron components. Part of the modular Lynx busbar family, it accepts Mega/Class-T fuses up to 400A per slot and snaps directly to adjacent Lynx modules — creating a tidy, professional DC distribution centre without custom copper busbars or separate fuse holders.
Key Features
- 4x fuse positions — accept Mega fuses or Class-T fuses up to 400A each
- 1000A continuous busbar rating — supports even the largest battery banks and inverters
- M10 terminal connections for secure, high-torque lug attachment to main busbars
- Modular snap-together design — connects directly to Lynx Power In, Lynx Shunt, and Lynx Smart BMS
- LED fuse-blown indicators — visually identify a blown fuse without a multimeter
- IP21 rated enclosure — suitable for engine rooms, switchboards, and battery compartments
- Individual load circuit output connections — clean distribution to inverters, chargers, and loads
Technical Specifications
| Specification | Value |
|---|---|
| Max Current | 1000A |
| Fuse Slots | 4 |
| Max Fuse Size | 400A |
| Communication | None |
| Voltage Rating | Up to 48V DC |
| Terminal Size | M10 |
| Dimensions | 170 x 290 x 80 mm |
| Weight | 2.3 kg |
Lynx System Integration
The Lynx product family uses a modular snap-together design — individual Lynx units connect side-by-side to form a clean, safe high-current DC distribution centre. Combine a Lynx Power In, Lynx Distributor, and Lynx Shunt to create a compact, professional battery management hub for your system.
Use Cases
In off-grid solar installations, the Lynx Distributor sits between the battery bank and multiple high-current loads — MultiPlus inverter/chargers, DC-DC converters, and large MPPT chargers each get their own individually fused output. With LED blow indicators and a lockable cover, the Distributor makes fault-finding and maintenance straightforward even in remote locations. Having individually fused outputs also means a single load fault cannot take down the entire system — a critical reliability feature for unattended installations.
For marine and motorhome systems, the Lynx Distributor (M10) provides a tidy, certified fused distribution point that meets marine and automotive electrical standards. Replace a wall of individual fuse holders with one compact modular unit that snap-fits to your existing Lynx Power In or Shunt, significantly reducing the wiring footprint inside tight cabinetry. The lockable transparent cover keeps connections safe from accidental contact while still allowing visual inspection of fuse status during routine checks.
