Lynx Busbar | Victron | Lynx Power In (M10)
Product Details

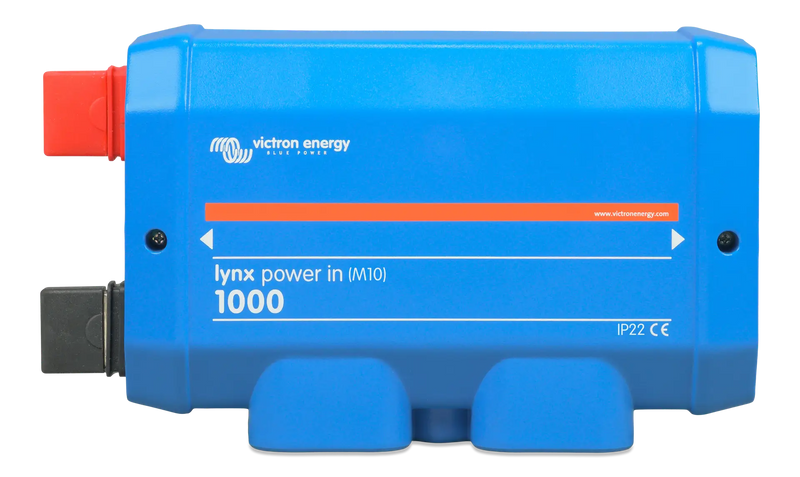

The Victron Lynx Power In (M10) is the battery connection point at the heart of the modular Lynx busbar system. It provides a robust, high-current DC input from your battery bank into the Lynx distribution chain, with heavy-duty busbars rated to 1000A continuous. As part of Victron's snap-together Lynx family, the Power In (M10) connects side-by-side with Lynx Distributors, Lynx Shunts, and Lynx Smart BMS modules to form a clean, professional DC distribution centre.
Key Features
- 1000A continuous current rating — handles the largest lithium and lead-acid battery banks
- M10 battery terminal connection for secure, high-torque lug attachment
- Modular Lynx snap-together design — mounts directly beside Lynx Distributor, Shunt, or Smart BMS
- IP21 rated housing — suitable for engine rooms, battery compartments, and switchboards
- Positive and negative busbars exposed for easy downstream connection
- Compact, uniform footprint — integrates cleanly into panel or rack installations
Technical Specifications
| Specification | Value |
|---|---|
| Max Current | 1000A |
| Communication | None |
| Voltage Rating | Up to 48V DC |
| Terminal Size | M10 |
| Dimensions | 170 x 290 x 80 mm |
| Weight | 2.1 kg |
Lynx System Integration
The Lynx product family uses a modular snap-together design — individual Lynx units connect side-by-side to form a clean, safe high-current DC distribution centre. Combine a Lynx Power In, Lynx Distributor, and Lynx Shunt to create a compact, professional battery management hub for your system.
Use Cases
In off-grid and solar storage systems, the Lynx Power In provides the main positive and negative connection point for your battery bank, feeding current cleanly into fused distribution or a battery monitoring shunt. Using the modular Lynx system keeps high-current wiring contained, labelled, and accessible for maintenance — an important safety consideration in any large energy storage installation. Whether your bank is 100Ah or 1000Ah, the Lynx Power In handles the full continuous load without derating.
For marine and motorhome applications, the Lynx Power In's compact IP21 enclosure fits neatly in switchboard cabinets, engine rooms, and battery compartments. The M10 terminals handle large-gauge cable lugs required for high-current 12V, 24V, and 48V systems. The snap-together Lynx system eliminates the need for custom copper busbars, saving installation time and cost — a meaningful advantage in confined build spaces where neat, certified wiring is both a safety and resale requirement.
