Victron Energy

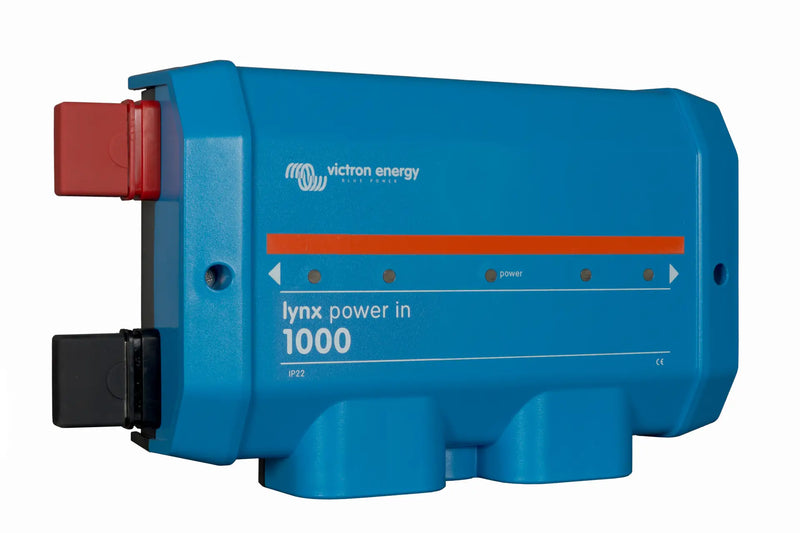

Lynx Busbar | Victron | Lynx Power In (M8)
$235.00
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
| Specification | Value |
|---|---|
| Supply Voltage Range | 9 – 60 V DC |
| Supported System Voltages | 12, 24 or 48 V |
| Maximum Continuous Current | 1000 A DC |
| Number of Connections | 4 (positive and negative, unfused) |
| Busbar Connection | M8 |
| Fuse Monitoring | None (no fuses in this module) |
| Enclosure Material | ABS plastic |
| Dimensions (H × W × D) | 290 × 170 × 80 mm |
| Weight | 2.1 kg |
| Busbar Material | Tinned copper, 8 × 30 mm |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| IP Rating | IP22 |
