Lynx Busbar | Victron | Lynx Shunt VE.Can (M10)
Product Details

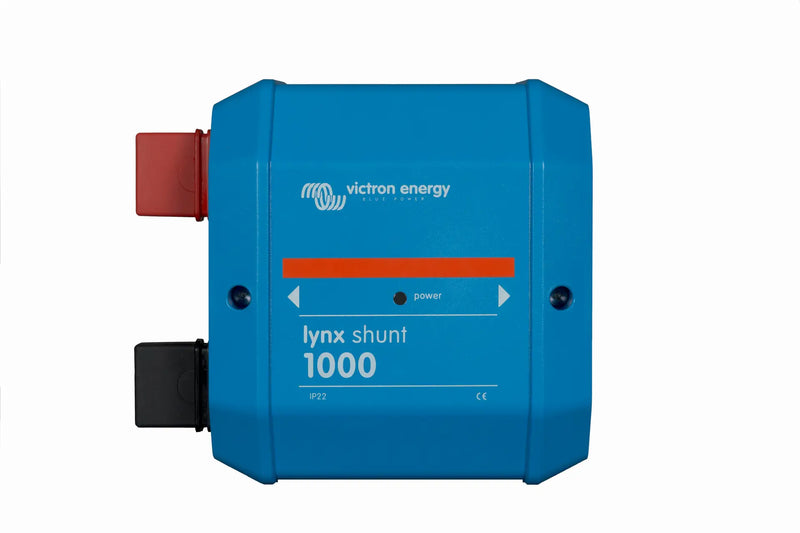

The Victron Lynx Shunt VE.Can (M10) is an integrated battery monitor and high-current busbar module in one compact Lynx-compatible housing. It measures current up to 1000A on the main DC bus and communicates battery state of charge, voltage, current, power, and consumed amp-hours to a connected GX device (Cerbo GX, Ekrano GX, Venus GX) via VE.Can — providing live battery data in the VRM portal and local GX display with no separate battery monitor wiring required.
Key Features
- 1000A continuous current measurement — accurately monitors large lithium and lead-acid battery banks
- VE.Can communication — direct integration with all Cerbo GX, Ekrano GX, and Venus GX devices
- Displays voltage, current, power, state of charge, and time-to-go via connected GX device
- M10 terminal connections for heavy-duty main busbar connection
- Modular snap-together Lynx design — mounts alongside Lynx Power In and Lynx Distributor modules
- IP21 rated enclosure — suitable for battery rooms, engine rooms, and switchboard cabinets
- Eliminates need for a separate BMV battery monitor in GX-based systems
Technical Specifications
| Specification | Value |
|---|---|
| Max Current | 1000A |
| Communication | VE.Can |
| Voltage Rating | Up to 70V DC |
| Terminal Size | M10 |
| Dimensions | 170 x 186 x 80 mm |
| Weight | 1.4 kg |
Lynx System Integration
The Lynx product family uses a modular snap-together design — individual Lynx units connect side-by-side to form a clean, safe high-current DC distribution centre. Combine a Lynx Power In, Lynx Distributor, and Lynx Shunt to create a compact, professional battery management hub for your system.
Use Cases
In off-grid solar systems paired with a Cerbo GX or Ekrano GX, the Lynx Shunt VE.Can replaces a standalone battery monitor and integrates battery data directly into the GX dashboard and VRM portal. Track battery state of charge, daily cycling history, and alarm thresholds remotely — essential for unattended off-grid cabins, pumping stations, and telecommunications sites.
On marine vessels and large motorhomes, the Lynx Shunt provides accurate battery monitoring across high-capacity lithium or lead-acid banks. The VE.Can connection to a Cerbo or Ekrano GX ensures battery state of charge is always visible on the onboard touchscreen and accessible remotely via VRM — critical for voyage planning and power management at anchor.
