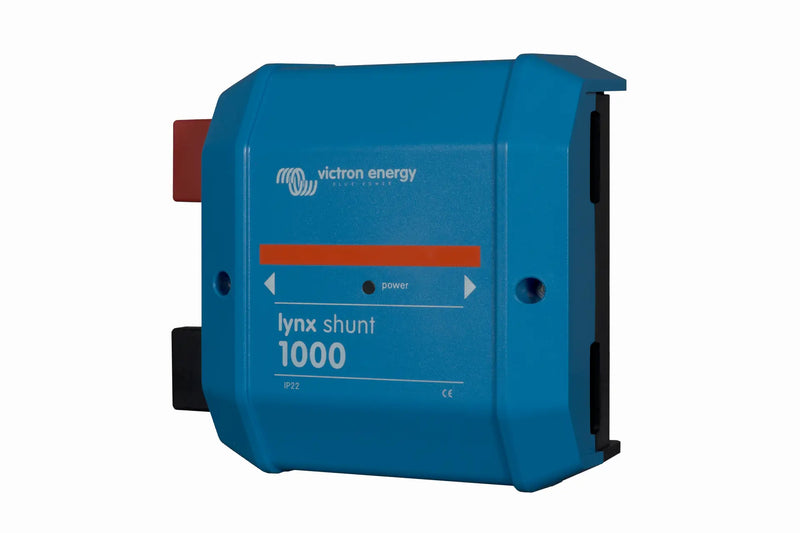

Lynx Busbar | Victron | Lynx Shunt VE.Can (M8)
$505.90
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
| Specification | Value |
|---|---|
| Supply Voltage Range | 9 – 70 V DC |
| Supported System Voltages | 12, 24 or 48 V |
| Maximum Continuous Current | 1000 A DC |
| Reverse Polarity Protection | No |
| Power Consumption | 60 mA @ 12V; 33 mA @ 24V; 20 mA @ 48V |
| Alarm Contact | Potential-free, 3 A / 30 V DC / 250 V AC |
| Fuse Type (M8 model) | CNN fuse (purchased separately) |
| Busbar Connection | M8 |
| Fuse Dummy Busbar | Not included on M8 model |
| VE.Can Interface | RJ45 (two RJ45 terminators included) |
| RJ10 Power Connection | To Lynx Distributor |
| Temperature Sensor | Screw terminal (sensor included) |
| Relay | Screw terminal |
| Battery Monitor | Yes — integrated shunt-based battery monitor via VE.Can to GX device |
| Enclosure Material | ABS plastic |
| Dimensions (H × W × D) | 190 × 180 × 80 mm |
| Weight | 1.4 kg |
| Busbar Material | Tinned copper, 8 × 30 mm |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| IP Rating | IP22 |
