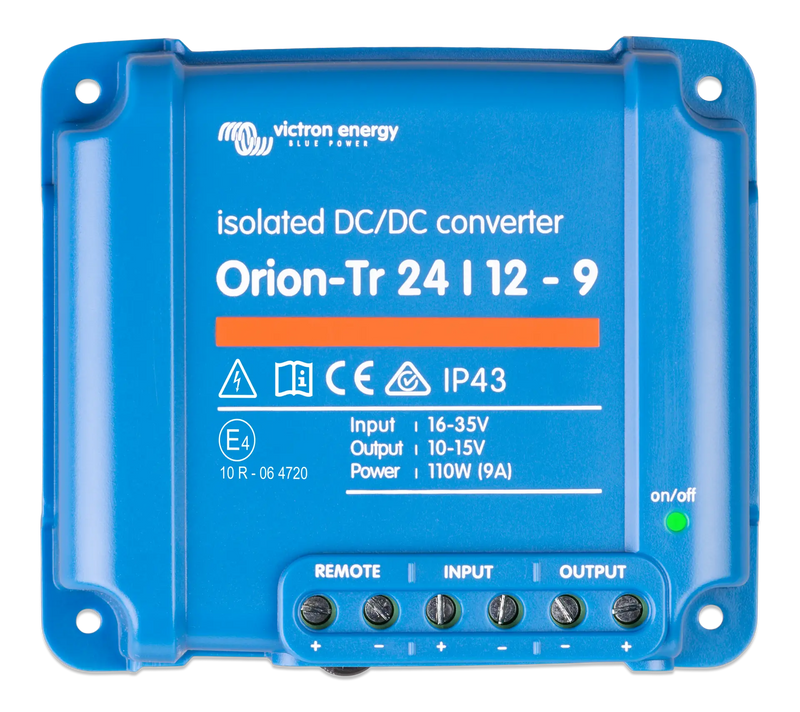

DC-DC Converter | Victron | Orion-Tr 24/12-9A (110W) Isolated DC-DC converter
$91.49
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
Note: This is a DC-DC voltage converter with a fixed adjustable output. It is not intended for direct multi-stage battery charging.
| Specification | Value |
|---|---|
| Input Voltage Range | 16 – 35 V |
| Under-Voltage Shutdown | 14 V |
| Under-Voltage Restart | 15 V |
| Nominal Output Voltage | 12.2 V |
| Output Voltage Adjust Range | 10 – 15 V |
| Output Voltage Tolerance | ± 0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current @ 25°C | 9 A |
| Maximum Output Current (10 s) | 12.5 A |
| Short Circuit Output Current | 39 A |
| Continuous Output Power @ 25°C | 110 W |
| Continuous Output Power @ 40°C | 85 W |
| Efficiency | 85% |
| No-Load Input Current | < 40 mA |
| Standby (disabled via remote) | < 200 µA |
| Galvanic Isolation | 200 V DC between input, output and case |
| Operating Temperature | -20 to +55 °C (derate 3% per °C above 40°C) |
| Weight | 0.42 kg |
| Dimensions (H × W × D) | 100 × 113 × 47 mm |
| Max Cable Cross-section | 6 mm² (AWG10) |
| Protection | Short circuit proof (auto-recover), over-temperature derating, internal fuse |
| Bluetooth | None |
| Certifications | EN 60950; EN 61000-6-3/55014-1; EN 61000-6-2/6-1/55014-2; ECE R10-5 |
