Victron Energy

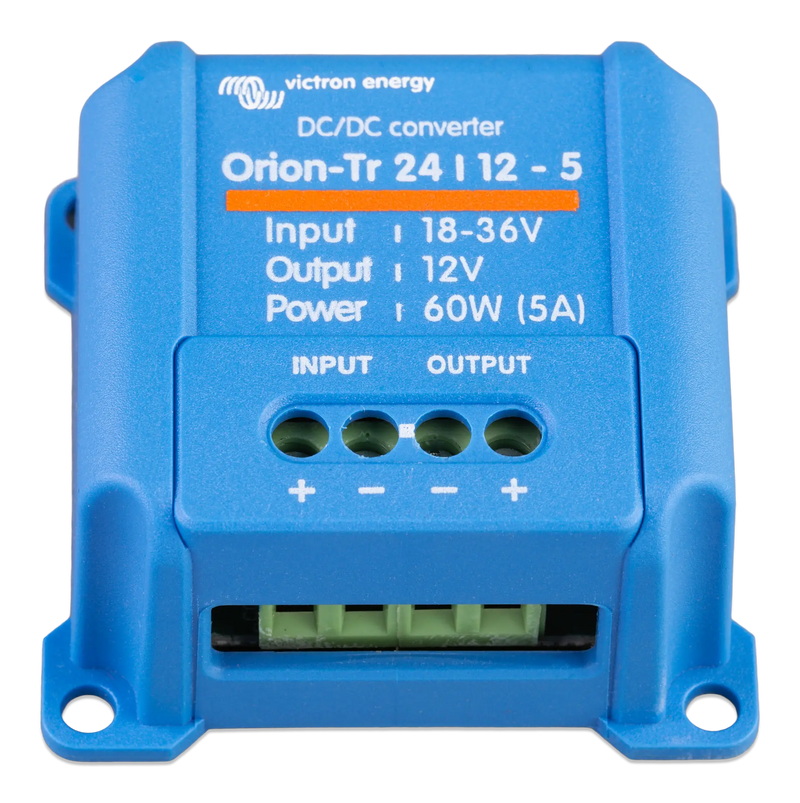

DC-DC Converter | Victron | Orion-Tr 24/12-5 DC-DC Converter Non-isolated
$35.00
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
Note: This is a DC-DC voltage converter with a fixed adjustable output. It is not intended for direct multi-stage battery charging.
| Specification | Value |
|---|---|
| Input Voltage Range | 18 – 35 V |
| Nominal Output Voltage | 12.7 V |
| Continuous Output Current | 5 A |
| Maximum Output Current | 7 A |
| Continuous Output Power | 60 W |
| Efficiency | 95% |
| No-Load (Off-load) Current | < 20 mA |
| Galvanic Isolation | None (non-isolated) |
| Operating Temperature | -20 to +55 °C (derate 3% per °C above 40°C) |
| Max Cable Cross-section | 3.3 mm² (AWG12) |
| Weight | 0.09 kg |
| Dimensions (H × W × D) | 53 × 51 × 27 mm |
| Protection | IP43 when screw terminals oriented downward |
| Bluetooth | None |
| Certifications | EN 60950; EN 61000-6-3/55014-1; EN 61000-6-2/6-1/55014-2; ECE R10-6 |
