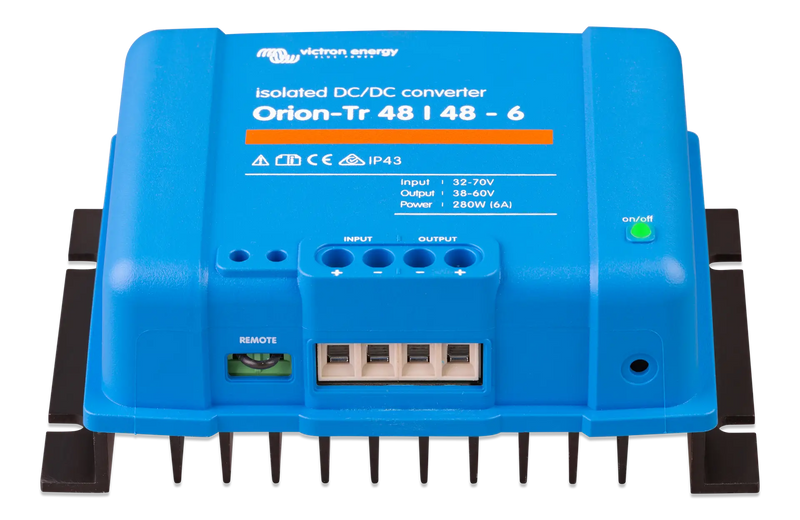

DC-DC Converter | Victron | Orion-Tr 48/48-6A (280W) Isolated DC-DC converter
$186.85
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
Note: This is a DC-DC voltage converter with a fixed adjustable output. It is not intended for direct multi-stage battery charging.
| Specification | Value |
|---|---|
| Input Voltage Range | 32 – 70 V |
| Under-Voltage Shutdown | 28 V |
| Under-Voltage Restart | 30 V |
| Nominal Output Voltage | 48.2 V |
| Output Voltage Adjust Range | 40 – 60 V |
| Output Voltage Tolerance | ± 0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current @ 40°C | 6 A |
| Maximum Output Current (10 s) | 8 A |
| Short Circuit Output Current | 25 A |
| Continuous Output Power @ 25°C | 320 W |
| Continuous Output Power @ 40°C | 280 W |
| Efficiency | 89% |
| No-Load Input Current | < 80 mA |
| Standby (disabled via remote) | < 200 µA |
| Galvanic Isolation | 200 V DC between input, output and case |
| Operating Temperature | -20 to +55 °C (derate 3% per °C above 40°C) |
| Weight | 1.3 kg |
| Dimensions (H × W × D) | 130 × 186 × 70 mm |
| Protection | Short circuit proof (auto-recover), over-temperature derating |
| Bluetooth | None |
| Certifications | EN 60950; EN 61000-6-3/55014-1; EN 61000-6-2/6-1/55014-2; ECE R10-5 |
