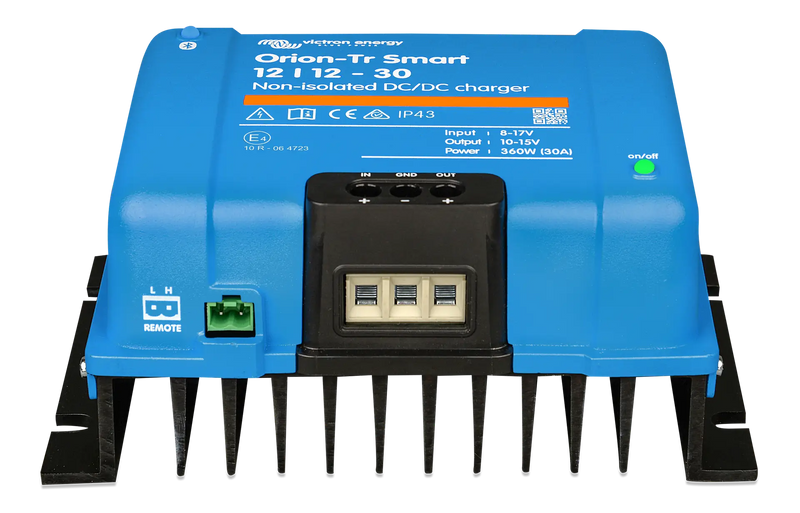

DC-DC Charger | Victron | Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
$296.88
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
| Specification | Value |
|---|---|
| Input Voltage Range | 8 – 17 V |
| Under-Voltage Shutdown | 7 V |
| Under-Voltage Restart | 7.5 V |
| Nominal Output Voltage | 12.2 V |
| Output Voltage Adjust Range | 10 – 15 V |
| Output Voltage Tolerance | ± 20 mV |
| Output Noise | 2 mV rms |
| Continuous Output Current @ 40°C | 30 A |
| Maximum Output Current (10 s) | 40 A |
| Short Circuit Output Current | 60 A |
| Continuous Output Power @ 25°C | 430 W |
| Continuous Output Power @ 40°C | 360 W |
| Efficiency | 87% |
| No-Load Input Current | < 80 mA |
| Standby Current | < 1 mA |
| Galvanic Isolation | None (non-isolated) |
| Operating Temperature | -20 to +55 °C (derate 3% per °C above 40°C) |
| Weight | 1.8 kg |
| Dimensions (H × W × D) | 130 × 186 × 80 mm |
| Bluetooth | Built-in Bluetooth Smart (VictronConnect) |
| Charging Algorithm | 3-stage adaptive: Bulk / Absorption / Float |
| Protection | Over-temperature, overload, short circuit, connector over-temperature |
| Certifications | EN 60950; EN 61000-6-3/55014-1; EN 61000-6-2/6-1/55014-2; ECE R10-5 |
