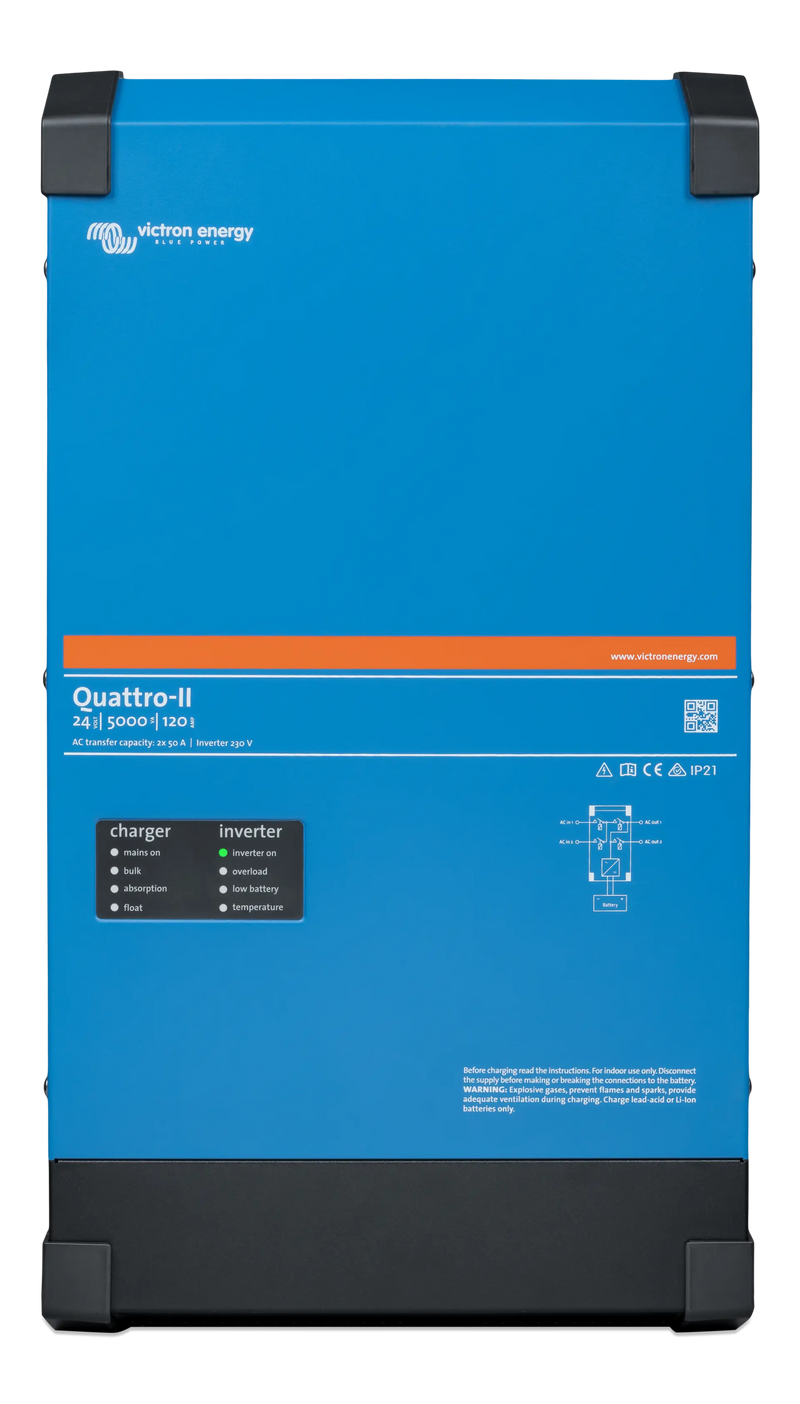

Inverter Charger | Victron | Quattro-II 24/5000/120-50/50 230V
$3,016.70
5-Year Warranty
Free Shipping AU
Expert Support
IEC 62619 Certified
Found it cheaper? Call us on 1300 303 498 to get a better deal!
Product Details
Specifications
| Specification | Value |
|---|---|
| DC Input Voltage Range | 19 – 33 V |
| Nominal Input Voltage | 24 V |
| AC Input Voltage Range | 187 – 265 VAC |
| AC Input Frequency | 45 – 65 Hz |
| Maximum AC Input Current | 2 × 50 A |
| Output Voltage | 230 VAC ± 2% |
| Output Frequency | 50 Hz ± 0.1% (adjustable to 60 Hz) |
| Continuous Output Power @ 25°C | 5000 VA |
| Continuous Output Power (W) | 4000 W |
| Continuous Output Power @ 40°C | 3700 W |
| Continuous Output Power @ 65°C | 3000 W |
| Maximum Apparent Feed-in Power | 5000 VA |
| Peak Power | 9000 W |
| Maximum Efficiency | 96% |
| Zero Load Power | 18 W |
| Zero Load Power (AES mode) | 12 W |
| Zero Load Power (Search mode) | 2 W |
| Max Battery Charge Current | 120 A (at up to 25°C ambient) |
| Charge Voltage — Absorption | 28.8 V (adjustable) |
| Charge Voltage — Float | 27.6 V (adjustable) |
| Storage Voltage | 26.4 V (adjustable) |
| Battery Temperature Sensor | Yes |
| Transfer Time | < 20 ms |
| Programmable Relay | 32 A (default: off in inverter mode); AC rating 230V/4A, DC rating 4A up to 35 VDC / 1A up to 60 VDC |
| Auxiliary Output | Yes |
| VE.Bus Port | Yes (for parallel, 3-phase, remote monitoring, system integration) |
| General Purpose Com. Port | Yes (×2) |
| Remote On/Off | Yes |
| Operating Temperature | -40 to +65 °C (fan-assisted cooling) |
| Humidity | Max. 95% (non-condensing) |
| Housing Material | Steel, blue RAL 5012 |
| IP Rating | IP21 |
| Battery Connection | M8 bolts |
| AC Connection | Screw terminals, 13 mm² (6 AWG) |
| Weight | 31 kg |
| Dimensions (H × W × D) | 607 × 329 × 149 mm |
| Certifications — Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Certifications — Emission/Immunity | EN 55014-1/2; EN-IEC 61000-3-2/3-3; IEC 61000-6-1/6-2/6-3 |
